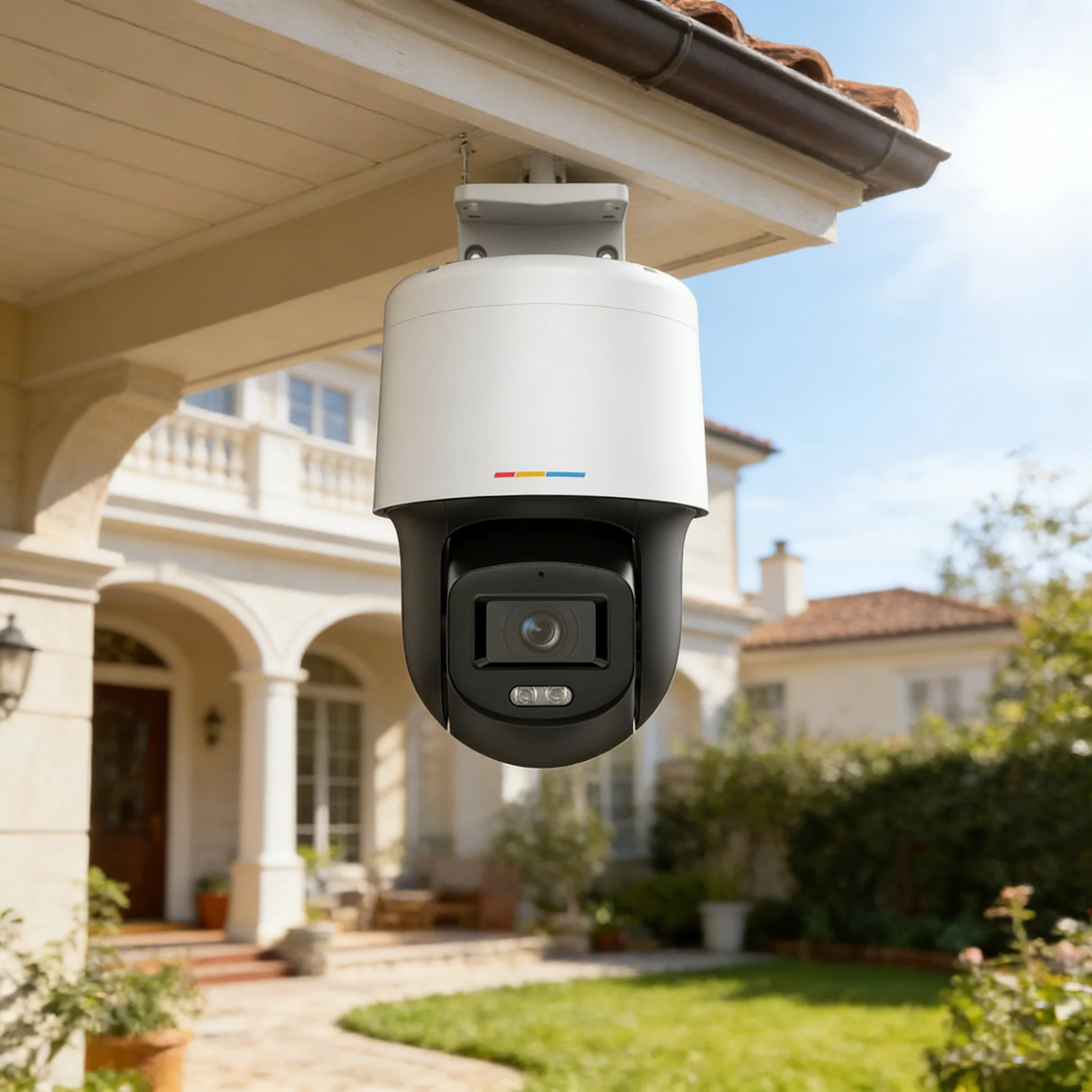

HIK DS-2DE2C400SCG-E 2-inch 4 MP ColorVu Mini PT Dome Network Camera

Product image 1

HIK DS-2DE2C400SCG-E 2-inch 4 MP ColorVu Mini PT Dome Network Camera

HIK DS-2DE2C400SCG-E 2-inch 4 MP ColorVu Mini PT Dome Network Camera

Key Features

  • High quality imaging with 4 MP resolution
  • Clear imaging against strong back light due to DWDR technology
  • 3D DNR technology delivers clean and sharp images
  • Hik-Connect cloud service and APP for remote management and views of devices
  • Built-in microphone and speakerfor real-time audio security
  • Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
  • Water and dust resistant IP66

Technical Specifications

Camera
Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.001 Lux @(F1.0, AGC ON), 0 Lux with Light
Lens
Focal Length 2.8 mm/4 mm
FOV

2.8 mm, horizontal FOV 105.7°, vertical FOV 57.3°, diagonal FOV 124.9°

4 mm, horizontal FOV 88.7°, vertical FOV 44.7°, diagonal FOV 107.5°
Aperture F1.0
Illuminator
Supplement Light Type White Light
Supplement Light Range White Light Distance: up to 30 m
Smart Supplement Light Yes
PTZ
Movement Range (Pan) 0° to 340°
Movement Range (Tilt) -5° to 105°
Pan Speed Pan speed: configurable from 4° to 21°/s
Tilt Speed Tilt speed: configurable from 4° to 19°/s
Video
Video Compression H.265, H.264, MJPEG
H.264 Type Baseline Profile, Main Profile, High Profile
H.265 Type Main Profile
Main Stream

50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Video Bit Rate 32 Kbps to 8 Mbps
Audio
Audio Compression G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC-LC/PCM
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz/16 kHz
Environment Noise Filtering Yes
Network
Protocols IPv4/IPv6, HTTP, HTTPS, Qos, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour
API Open Network Video Interface, ISAPI, SDK
Image Settings Saturation, brightness, contrast, sharpness
Wide Dynamic Range (WDR) Digital WDR
Image Enhancement BLC, HLC, 3D DNR
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-board Storage Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Built-in Microphone Yes
Built-in Speaker Yes
Reset Yes
Event
Basic Event Motion detection, video tampering alarm, exception
Alarm Linkage Upload to FTP, notify surveillance center, send email, upload to memory card
General
Operating Condition

With supplement light on: -30 â„?to 40 â„? Humidity 95% or less (non-condensing)

With supplement light off: -30 â„?to 50 â„? Humidity 95% or less (non-condensing)
General Function Mirror, password protection, watermark
Power

12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug, reverse polarity protection

PoE: 802.3af, 36 V to 57 V, 0.2 A to 0.3 A, max. 10 W
Dimensions

Camera dimension: 162 mm × 120 mm × 234.2 mm (6.4" × 4.7" × 9.2")

Package dimension: 205 mm × 167 mm × 289 mm (8.1 × 6.6" × 11.4")"
Weight

Camera weight: 780 g (1.7 lb.)

With package weight: 1280 g (2.8 lb.)
Approval
EMC

FCC: 47 CFR Part 15, Subpart B;

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014;

IC: ICES-003: Issue 7
Protection IP66 (IEC 60529-2013)
