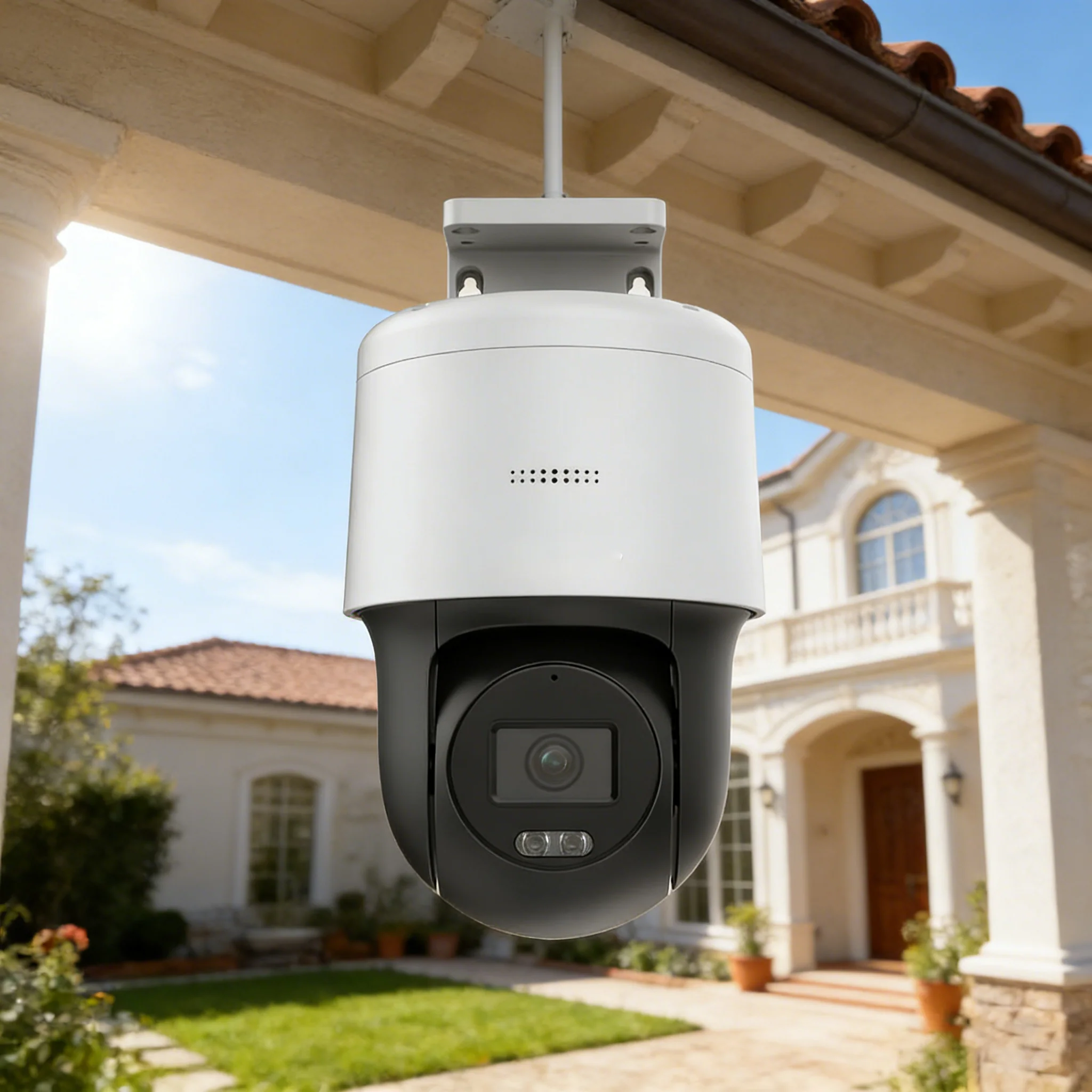

HIK DS-2DE2C400MW-DE(S7) 2-inch 4 MP IR Mini PT Dome Network Camera
Key Features
- High quality imaging with 4 MP resolution
- Clear imaging against strong back light due to DWDR technology
- 3D DNR technology delivers clean and sharp images
- Hik-Connect cloud service and APP for remote management and views of devices
- Built-in microphone for real-time audio security
- Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
- Water and dust resistant IP66
Technical Specifications
| Camera | |
|---|---|
| Image Sensor | 1/3�Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.005 Lux @(F1.2，AGC ON), B/W: 0 Lux with IR |
| Lens | |
| Focal Length | 2.8 mm/ 4 mm |
| FOV |
2.8 mm, horizontal FOV 97°, vertical FOV 52.3°, diagonal FOV 114.3° 4 mm, horizontal FOV 79°, vertical FOV 42.4°, diagonal FOV 93.3° |
| Aperture | F1.6 |
| Illuminator | |
| Supplement Light Type | IR & White Light |
| Supplement Light Range |
White Light Distance: up to 30 m IR Distance: up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| PTZ | |
| Movement Range (Pan) | 0° to 340° |
| Movement Range (Tilt) | -5° to 105° |
| Pan Speed | Pan speed: configurable from 4° to 21°/s |
| Tilt Speed | Tilt speed: configurable from 4° to 19°/s |
| Video | |
| Video Compression | H.265, H.264, MJPEG |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Main Stream | 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Audio | |
| Audio Compression | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC/PCM |
| Audio Bit Rate | 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)/16-64Kbps(AAC) |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | IPv4/IPv6, HTTP, HTTPS, Qos, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour |
| API | Open Network Video Interface, ISAPI, SDK |
| Image | |
| Image Settings | Saturation, brightness, contrast, sharpness |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | BLC, HLC, 3D DNR |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-board Storage | Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB |
| Built-in Microphone | Yes |
| Built-in Speaker | Yes |
| Reset | Yes |
| Event | |
| Basic Event | Motion detection |
| Alarm Linkage | Upload to FTP, notify surveillance center, send email, upload to memory card |
| General | |
| Operating Condition |
With supplement light on: -30 â„?to 40 â„? Humidity 95% or less (non-condensing) With supplement light off: -30 â„?to 50 â„? Humidity 95% or less (non-condensing) |
| General Function | Mirror, password protection, watermark |
| Power |
12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.3 A, max. 10.8 W |
| Dimensions |
Camera dimension: 162 mm × 120 mm × 234.2 mm (6.4" × 4.7" × 9.2") Package dimension: 205 mm × 167 mm × 289 mm (8.1 × 6.6" × 11.4")" |
| Weight |
Camera weight: 700 g (1.5 lb.) With package weight: 1250 g (2.8 lb.) |
| Approval | |
| EMC |
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); IC (ICES-003: Issue 6, 2016) |
| Protection | IP66 (IEC 60529-2013) |
