HIK DS-2CV2146G0-IDW 4 MP Outdoor AcuSense Fixed Dome Network Camera

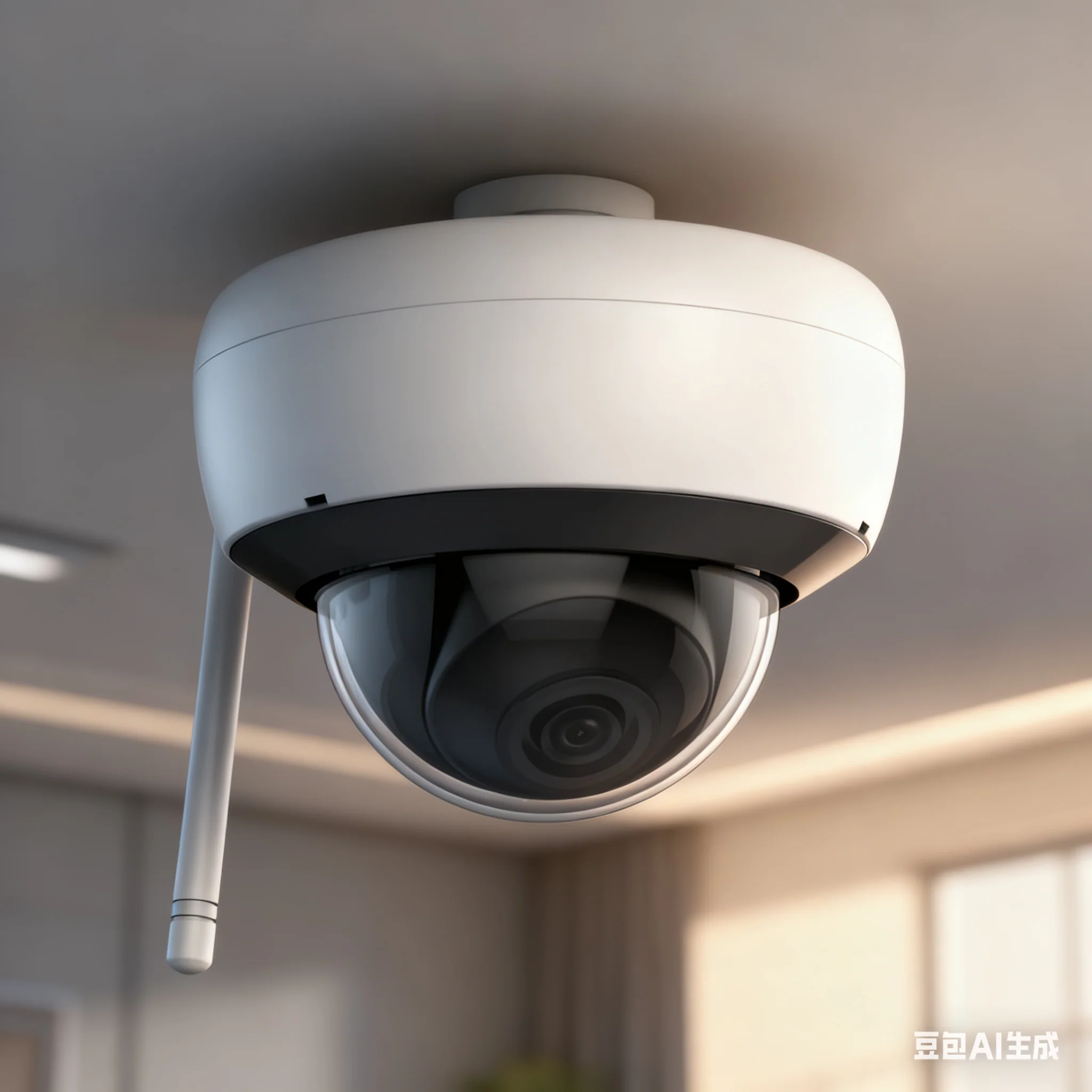

Product image 1

HIK DS-2CV2146G0-IDW 4 MP Outdoor AcuSense Fixed Dome Network Camera

HIK DS-2CV2146G0-IDW 4 MP Outdoor AcuSense Fixed Dome Network Camera

4 MP Outdoor AcuSense Fixed Dome Network Camera

  • High quality imaging with 4 MP resolution
  • Realizing Wi-Fi connection and easy installation
  • Provides real-time security via built-in two-way audio
  • Efficient H.265 compression technology
  • EXIR 2.0, advanced infrared technology with long IR distance
  • Wi-Fi connection with Hik-Connect directly is not possible
  • Water and dust resistant (IP66)
  • Support micro SD/SDHC/SDXC card, up to 256 GB
  • False alarm reduction through human and vehicle target classification based on deep learning

Available models:

DS-2CV2146G0-IDW(2.8mm)

Add to Favorites

Product Data

  • Camera
  • Image Sensor1/2.7∪ Progressive Scan CMOS
  • Min. Illumination0.005 Lux @ (F1.6, AGC ON)
  • Shutter Speed1/3 s to 1/100,000 s
  • P/NP/N
  • Wide Dynamic Range120 dB
  • Day & NightICR Cut
  • Angle AdjustmentPan: 0～ to 355～, tilt: 0～ to 75～, rotate: 0～ to 355～
  • Lens
  • Lens Type & FOV

    2.8 mm, horizontal FOV 101～, vertical FOV 55～, diagonal FOV 119～

    4 mm, horizontal FOV 82～, vertical FOV 44～, diagonal FOV 97～
  • ApertureF1.6
  • Lens MountM12
  • Illuminator
  • Smart Supplement LightYes
  • IR RangeUp to 30 m
  • Wavelength850 nm
  • Video
  • Max. Resolution2560 ℅ 1440
  • Main Stream

    50Hz: 25 fps (2560 ℅ 1440, 1920 ℅ 1080, 1280 ℅ 720)

    60Hz: 30 fps (2560 ℅ 1440, 1920 ℅ 1080, 1280 ℅ 720)
  • Sub Stream

    50Hz: 25 fps (640 ℅ 360)

    60Hz: 30 fps (640 ℅ 360)
  • Video Compression

    Main Stream: H.265/H.264

    Sub-Stream: H.265/H.264

  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseLine Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR/VBR
  • Audio
  • Environment Noise FilteringYes
  • Audio Sampling Rate8 kHz/16 kHz
  • Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate64Kbps(G.711 ulaw)/64Kbps(G.711 alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32 to 160Kbps(MP2L2)
  • Network
  • Simultaneous Live ViewUp to 6 channels
  • APIISAPI, SDK
  • ProtocolsTCP/IP, ICMP, DHCP, DNS, DDNS ,HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour
  • User/Host

    Up to 32 users

    3 levels: Administrator, Operator and User
  • SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2
  • Network StorageMicroSD/SDHC/SDXC card (256 GB) local storage, and NAS(NFS, SMB/CIFS), auto network replenishment (ANR)
  • Client

    Wired network: Hik-Connect, iVMS-4200

    Wi-Fi: iVMS-4200

    *Wi-Fi connection with Hik-Connect directly is not possible.
  • Web Browser

    Plug-in required live view: IE 10, IE 11

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+

    Local service: Chrome 57.0+, Firefox 52.0+
  • Alarm TriggerMotion detection, exception
  • Wi-Fi
  • Encryption Mode64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK
  • Wi-Fi Protocol

    802.11b: CCK, QPSK, BPSK

    802.11g/n: OFDM
  • Frequency Range2.412 GHz - 2.472 GHz
  • Channel Bandwidth 20/40MHz
  • Modulation

    802.11b: CCK, QPSK, BPSK

    802.11g/n: OFDM

  • Wireless RangeUp to 120 m (The performance varies based on actual environment)
  • Transfer Rate300 Mbps
  • Image
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Image EnhancementBLC, HLC, 3D DNR
  • Image Settingsmirror, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • SNR≡ 52 dB
  • Interface
  • On-board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
  • Hardware ResetYes
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • Event
  • Basic Event Motion detection, audible alarm output, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Deep Learning Function
  • Premier ProtectionLine crossing detection, intrusion detection, region entrance detection, region exiting detection
  • General
  • Linkage MethodUpload to memory card/NAS, notify surveillance center, trigger record, trigger capture, audible warning
  • Firmware VersionV5.5.136
  • Web Client LanguageEnglish
  • General FunctionAnti-flicker, heartbeat, password reset via e-mail, pixel counter
  • Software ResetReset via web browser and client software
  • Storage Conditions-30 ～C to 60 ～C (-22 ～F to 140 ～F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 ～C to 60 ～C (-22 ～F to 140 ～F). Humidity 95% or less (non-condensing)
  • Power Supply12 VDC ㊣ 25%
  • Power Consumption and Current12 VDC, 0.6 A, max. 7 W
  • Power Interface?5.5 mm coaxial power plug
  • MaterialPolycarbonate cover, polycarbonate body
  • Camera Dimension?126.0 ℅ 96.1 mm (?5.0∪ ℅ 3.8∪)
  • Package Dimension170 ℅ 170 ℅ 150 mm (7.0" ℅ 7.0" ℅ 5.9")
  • Camera WeightApprox. 590 g (1.3 lb.)
  • With Package WeightApprox. 989 g (2.2 lb.)
  • Approval
  • EMC

    FCC SDoC (47 CFR Part 15, Subpart B);

    CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

    RCM (AS/NZS CISPR 32: 2015);

    IC VoC (ICES-003: Issue 6, 2016);

    KC (KN 32: 2015, KN 35: 2015)
  • RF

    FCC ID (FCC Part 15.247(BT or 2.4G));

    IC ID (RSS-247(BT or 2.4G));

    CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G));

    WPC (EN 301 489-1 V2.1.1(BT or 2.4G); EN 301 489-17 V3.1.1(BT or 2.4G); EN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014);

    KC (KN 32:2015; KN 35: 2015; KN 301489-1; KN 301489-17);

    ICASA (EN 301 489-1 V2.1.1(BT or 2.4G); EN 301 489-17 V3.1.1(BT or 2.4G); EN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014; EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
  • Safety

    UL (UL 60950-1);

    CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

    CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

    BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);

    LOA (IEC/EN 60950-1)
  • Environment

    CE-RoHS (2011/65/EU)

    WEEE (2012/19/EU)

    Reach (Regulation (EC) No 1907/2006)
  • ProtectionIP66 (IEC 60529-2013)
$350,000.00

Original: $1,000,000.00

-65%
HIK DS-2CV2146G0-IDW 4 MP Outdoor AcuSense Fixed Dome Network Camera—

$1,000,000.00

$350,000.00

Product Information

Shipping & Returns

Description

4 MP Outdoor AcuSense Fixed Dome Network Camera

  • High quality imaging with 4 MP resolution
  • Realizing Wi-Fi connection and easy installation
  • Provides real-time security via built-in two-way audio
  • Efficient H.265 compression technology
  • EXIR 2.0, advanced infrared technology with long IR distance
  • Wi-Fi connection with Hik-Connect directly is not possible
  • Water and dust resistant (IP66)
  • Support micro SD/SDHC/SDXC card, up to 256 GB
  • False alarm reduction through human and vehicle target classification based on deep learning

Available models:

DS-2CV2146G0-IDW(2.8mm)

Add to Favorites

Product Data

  • Camera
  • Image Sensor1/2.7∪ Progressive Scan CMOS
  • Min. Illumination0.005 Lux @ (F1.6, AGC ON)
  • Shutter Speed1/3 s to 1/100,000 s
  • P/NP/N
  • Wide Dynamic Range120 dB
  • Day & NightICR Cut
  • Angle AdjustmentPan: 0～ to 355～, tilt: 0～ to 75～, rotate: 0～ to 355～
  • Lens
  • Lens Type & FOV

    2.8 mm, horizontal FOV 101～, vertical FOV 55～, diagonal FOV 119～

    4 mm, horizontal FOV 82～, vertical FOV 44～, diagonal FOV 97～
  • ApertureF1.6
  • Lens MountM12
  • Illuminator
  • Smart Supplement LightYes
  • IR RangeUp to 30 m
  • Wavelength850 nm
  • Video
  • Max. Resolution2560 ℅ 1440
  • Main Stream

    50Hz: 25 fps (2560 ℅ 1440, 1920 ℅ 1080, 1280 ℅ 720)

    60Hz: 30 fps (2560 ℅ 1440, 1920 ℅ 1080, 1280 ℅ 720)
  • Sub Stream

    50Hz: 25 fps (640 ℅ 360)

    60Hz: 30 fps (640 ℅ 360)
  • Video Compression

    Main Stream: H.265/H.264

    Sub-Stream: H.265/H.264

  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseLine Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR/VBR
  • Audio
  • Environment Noise FilteringYes
  • Audio Sampling Rate8 kHz/16 kHz
  • Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate64Kbps(G.711 ulaw)/64Kbps(G.711 alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32 to 160Kbps(MP2L2)
  • Network
  • Simultaneous Live ViewUp to 6 channels
  • APIISAPI, SDK
  • ProtocolsTCP/IP, ICMP, DHCP, DNS, DDNS ,HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour
  • User/Host

    Up to 32 users

    3 levels: Administrator, Operator and User
  • SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2
  • Network StorageMicroSD/SDHC/SDXC card (256 GB) local storage, and NAS(NFS, SMB/CIFS), auto network replenishment (ANR)
  • Client

    Wired network: Hik-Connect, iVMS-4200

    Wi-Fi: iVMS-4200

    *Wi-Fi connection with Hik-Connect directly is not possible.
  • Web Browser

    Plug-in required live view: IE 10, IE 11

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+

    Local service: Chrome 57.0+, Firefox 52.0+
  • Alarm TriggerMotion detection, exception
  • Wi-Fi
  • Encryption Mode64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK
  • Wi-Fi Protocol

    802.11b: CCK, QPSK, BPSK

    802.11g/n: OFDM
  • Frequency Range2.412 GHz - 2.472 GHz
  • Channel Bandwidth 20/40MHz
  • Modulation

    802.11b: CCK, QPSK, BPSK

    802.11g/n: OFDM

  • Wireless RangeUp to 120 m (The performance varies based on actual environment)
  • Transfer Rate300 Mbps
  • Image
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Image EnhancementBLC, HLC, 3D DNR
  • Image Settingsmirror, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • SNR≡ 52 dB
  • Interface
  • On-board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
  • Hardware ResetYes
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • Event
  • Basic Event Motion detection, audible alarm output, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Deep Learning Function
  • Premier ProtectionLine crossing detection, intrusion detection, region entrance detection, region exiting detection
  • General
  • Linkage MethodUpload to memory card/NAS, notify surveillance center, trigger record, trigger capture, audible warning
  • Firmware VersionV5.5.136
  • Web Client LanguageEnglish
  • General FunctionAnti-flicker, heartbeat, password reset via e-mail, pixel counter
  • Software ResetReset via web browser and client software
  • Storage Conditions-30 ～C to 60 ～C (-22 ～F to 140 ～F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 ～C to 60 ～C (-22 ～F to 140 ～F). Humidity 95% or less (non-condensing)
  • Power Supply12 VDC ㊣ 25%
  • Power Consumption and Current12 VDC, 0.6 A, max. 7 W
  • Power Interface?5.5 mm coaxial power plug
  • MaterialPolycarbonate cover, polycarbonate body
  • Camera Dimension?126.0 ℅ 96.1 mm (?5.0∪ ℅ 3.8∪)
  • Package Dimension170 ℅ 170 ℅ 150 mm (7.0" ℅ 7.0" ℅ 5.9")
  • Camera WeightApprox. 590 g (1.3 lb.)
  • With Package WeightApprox. 989 g (2.2 lb.)
  • Approval
  • EMC

    FCC SDoC (47 CFR Part 15, Subpart B);

    CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

    RCM (AS/NZS CISPR 32: 2015);

    IC VoC (ICES-003: Issue 6, 2016);

    KC (KN 32: 2015, KN 35: 2015)
  • RF

    FCC ID (FCC Part 15.247(BT or 2.4G));

    IC ID (RSS-247(BT or 2.4G));

    CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G));

    WPC (EN 301 489-1 V2.1.1(BT or 2.4G); EN 301 489-17 V3.1.1(BT or 2.4G); EN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014);

    KC (KN 32:2015; KN 35: 2015; KN 301489-1; KN 301489-17);

    ICASA (EN 301 489-1 V2.1.1(BT or 2.4G); EN 301 489-17 V3.1.1(BT or 2.4G); EN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014; EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
  • Safety

    UL (UL 60950-1);

    CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

    CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

    BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);

    LOA (IEC/EN 60950-1)
  • Environment

    CE-RoHS (2011/65/EU)

    WEEE (2012/19/EU)

    Reach (Regulation (EC) No 1907/2006)
  • ProtectionIP66 (IEC 60529-2013)

You may also like

-65%NEW
Thumbnail 1

HIK DS-2CD2046G2-IU/SL 4 MP AcuSense Strobe Light and Audible Warning Fixed Mini Bullet Network Camera

$122.99

$43.05

-65%NEW
Thumbnail 1

HIK DS-2CD2646G2-IZS 4 MP AcuSense Motorized Varifocal Bullet Network Camera

$271.00

$94.85

-65%NEW
Thumbnail 1

HIK DS-2CD2783G2-IZS 8 MP AcuSense Motorized Varifocal Dome Network Camera

$298.00

$104.30

-65%NEW
Thumbnail 1

HIK DS-2CD2626G2-IZS 2 MP AcuSense Varifocal Bullet Network Camera

$213.00

$74.55

-65%NEW
Thumbnail 1

HIK DS-2CD2H23G2-IZS 2 MP AcuSense Motorized Varifocal Turret Network Camera

$245.00

$85.75

-65%NEW
Thumbnail 1

HIK DS-2CD2386G2-I(U) 4K AcuSense Fixed Turret Network Camera

$160.00

$56.00

-65%NEW
Thumbnail 1

HIK DS-2CD2366G2-I(U) 6 MP AcuSense Fixed Turret Network Camera

$130.50

$45.67

-65%NEW
Thumbnail 1

HIK DS-2CD2T86G2-ISU/SL 4K AcuSense Strobe Light and Audible Warning Fixed Bullet Network Camera

$252.00

$88.20

-65%NEW
Thumbnail 1

HIK DS-2CD2123G2-I(S) 2 MP AcuSense Fixed Dome Network Camera

$104.00

$36.40

-65%NEW
Thumbnail 1

HIK DS-2CD2686G2-IZSU/SL 4K AcuSense Strobe Light and Audible Warning Varifocal Bullet Network Camera

$379.00

$132.65

-65%NEW
Thumbnail 1

HIK DS-2CD2146G2-I(SU) 4 MP AcuSense Fixed Dome Network Camera

$114.00

$39.90

-65%NEW
Thumbnail 1

HIK DS-2CD2646G2-IZSU/SL 4 MP AcuSense Strobe Light and Audible Warning Motorized Varifocal Bullet Network Camera

$357.00

$124.95

HIK DS-2CV2146G0-IDW 4 MP Outdoor AcuSense Fixed Dome Network Camera | Hikvision
