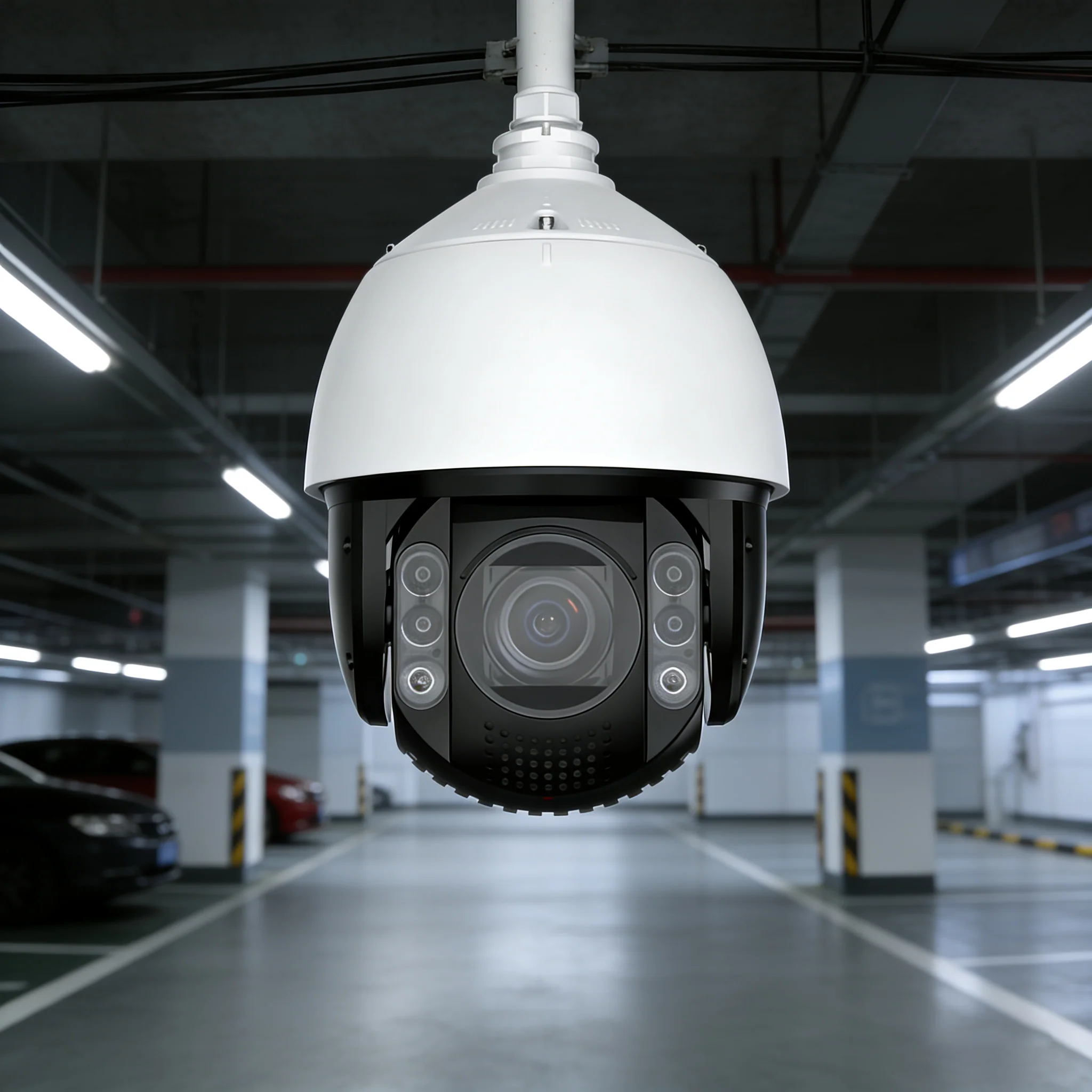

HIK DS-2DE7A245IX-AE/S1 7-inch 2 MP 45X Powered by DarkFighter IR Network Speed Dome
Key Features
- High quality imaging with 2 MP resolution
- 45x optical zoom provides close up views over expansive areas
- Intelligent functions based on deep learning
- Save time by tracking important targets automatically
Technical Specifications
| Lens | |
|---|---|
| FOV |
Horizontal field of view: 65.7° to 1.9° (Wide-Tele) Vertical field of view: 39.4° to 1.1° (Wide-Tele) Diagonal field of view: 73.1° to 2.3° (Wide-Tele) |
| Zoom Speed | Approx. 3.7s (Optical Lens, Wide-Tele) |
| Working Distance | 10 mm to 1500 mm (wide-tele) |
| Aperture Range | F1.6 to F4.95 |
| Focal Length | 4 mm to 180 mm, 45× optical zoom |
| Image | |
| Sub-Stream |
50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) |
| Main Stream |
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 50fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) 60fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Third Stream |
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| SVC | Yes |
| Network | |
| Network Storage | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour |
| API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users. 3 levels: Administrator, Operator and User |
| Client | iVMS-4200, Hik-Central, Hik-Connect |
| Web Browser | IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+, Safari 11+ |
| Security Measures | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering |
| Alarm Linkage | Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc. |
| Alarm | 2-ch alarm input and 1-ch alarm output |
| Audio | 1-ch audio input and 1-ch audio output |
| Interface | |
| Network Interface | 1 RJ45 10 M/100 M Ethernet Interface, Hi-PoE |
| Compression Standard | |
| H.264+ | Yes |
| H.265+ | Yes |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| Video Compression |
Main Stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG |
| H.265 Type | Main Profile |
| Video Bitrate | 32 Kbps to 16384 Kbps |
| Audio Compression | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
| Audio Bitrate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps(MP2L2) |
| Smart Feature | |
| Smart Event | Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Audio Exception Detection, Unattended Baggage Detection, Object Removal Detection |
| Smart Record | ANR (Automatic Network Replenishment), Dual-VCA |
| ROI | Main stream, sub-stream, and third stream respectively support eight fixed areas. |
| Camera Module | |
| Image Sensor | 1/2.8" progressive scan CMOS |
| Min. Illumination |
Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.0005Lux @(F1.6, AGC ON) 0 Lux with IR |
| White Balance | Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
| Gain | Auto/Manual |
| Shutter Time | 1/1 s to 1/30,000 s |
| Day & Night | IR Cut Filter |
| Digital Zoom | 16× |
| Privacy Mask | 24 programmable polygon privacy masks, mask color or mosaic configurable |
| Focus Mode | Auto/Semi-automatic/Manual |
| WDR | 120 dB |
| BLC | Yes |
| HLC | Yes |
| EIS | Yes |
| Defog | Yes |
| Supplement Light | |
| IR Distance | 200 m |
| Smart IR | Yes |
| PTZ | |
| Movement Range (Pan) | 360° endless |
| Pan Speed |
Configurable, from 0.1°/s to 160°/s, Preset speed: 240°/s |
| Movement Range (Tilt) | From -15° to 90° (Auto-Flip) |
| Tilt Speed |
Configurable, from 0.1°/s to 120°/s Preset Speed: 200°/s |
| Proportional Zoom | Yes |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory | Yes |
| Park Action | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Preset Freezing | Yes |
| Scheduled Task | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output |
| General | |
| Material | Aluminum alloy |
| Dimensions | Φ 220 mm × 353.4 mm (Φ 8.66" × 13.91") |
| Weight | Approx. 4.5 kg (9.92 lb) |
| Protection Level | IP66, IK10 (excluding glass window), 6000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Power |
24 VAC, 3.0 A, 50/60 Hz & Hi-PoE, 42.5 to 57 VDC, 1.41 A Max. 40 W, includes max. 16 W for IR and max. 10 W for heater) |
| Working Environment | -30°C to 65°C (-22°F to 149°F) |
