HIK DS-2SE7C432IWG-K/4G/14(F0) TandemVu 7-inch 4MP 32x Solar-powered Security Network Speed Dome Kit

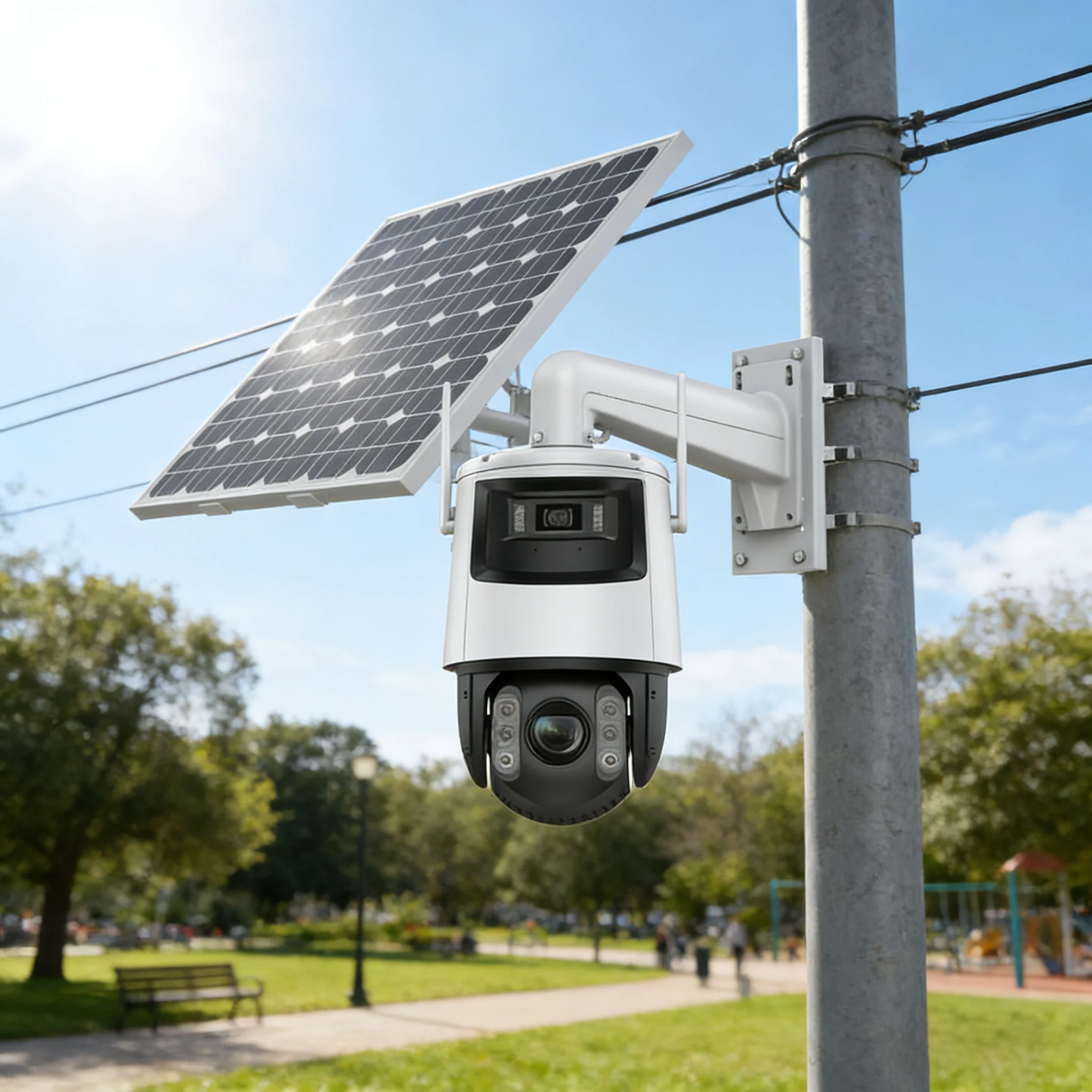

Product image 1

HIK DS-2SE7C432IWG-K/4G/14(F0) TandemVu 7-inch 4MP 32x Solar-powered Security Network Speed Dome Kit

HIK DS-2SE7C432IWG-K/4G/14(F0) TandemVu 7-inch 4MP 32x Solar-powered Security Network Speed Dome Kit

Key Features

  • Captures a large area and great details at the same time
  • High quality imaging with 4 MP resolution
  • Excellent low-light performance with ColorVu technology in bullet channel
  • Secures an expansive area with 32 × optical zoom and 16 × digital zoom
  • Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus, rapid focus
  • Expansive night view with up to 30 m IR distance in bullet channel, and 200 m IR distance in PTZ channel
  • Supports 12 VDC output
  • Supports scheduled sleep mode and low power sleep mode. The consumption reaches 0.5 W in sleep mode.

Technical Specifications

Camera
Image Sensor [Bullet channel] 1/1.8" Progressive Scan CMOS, [PTZ channel] 1/1.8" Progressive Scan CMOS
Max. Resolution [Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440
Min. Illumination [Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;
[PTZ channel]: Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR
Shutter Speed 1 s to 1/30,000 s
Day & Night ICR
Zoom [PTZ channel] 32 × optical, 16 × digital
Slow Shutter yes
Lens
Focal Length [Bullet channel] 2.8 mm, [PTZ channel] 5.9 to 188.8 mm mm
FOV [Bullet channel] horizontal field of view: 108°, vertical field of view: 56°, diagonal field of view: 134°, [PTZ channel] horizontal field of view: 60.2° to 2.3°, vertical field of view: 35.2° to 1.3°, diagonal field of view: 67.4° to 2.6°
Focus Auto,semi-auto,manual
Aperture [Bullet channel]: F1.0; [PTZ channel]: F1.5
Zoom Speed [PTZ channel]: approx. 5.6 s
Illuminator
Supplement Light Type [Bullet channel] IR, [PTZ channel] IR
Supplement Light Range [Bullet channel] IR: up to 30 m, [PTZ channel] IR: up to 200 m
Smart Supplement Light Yes
PTZ
Movement Range (Pan) 360°
Movement Range (Tilt) -15° to 90°
Pan Speed Pan speed: configurable from 0.1° to 80°/s, preset speed: 80°/s
Tilt Speed Tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
Proportional Pan Yes
Presets 300
Preset Freezing Yes
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
Park Action Preset,patrol scan
3D Positioning Yes
PTZ Status Display Yes
Scheduled Task Preset,patrol scan,dome reboot,aux output,dome adjust
Power-Off Memory Yes
Video
Main Stream [Bullet channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720),[PTZ channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 24 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream [Bullet channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240),[PTZ channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 24 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream [Bullet channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240),[PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline profile,Main profile,High profile
H.265 Type Main profile
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region Of Interest (ROI) 8 fixed regions for each stream
Audio
Audio Compression G.711,G.722.1,G.726,MP2L2,PCM,MP3,AAC-LC
Audio Bit Rate MP2L2：32 kbps，40 kbps，48 kbps，56 kbps，64 kbps，80 kbps，96 kbps，112 kbps，128 kbps，144 kbps，160 kbps，192 kbps AAC-LC：16 kbps，32 kbps，64 kbps； MP3：8 kbps,16 kbps，24 kbps，32 kbps，40 kbps，48 kbps，56 kbps，64 kbps，80 kbps，96 kbps，112 kbps，128 kbps，144 kbps，160 kbps，192 kbps，224 kbps，256 kbps，320 kbps
Audio Sampling Rate AAC-LC: 16 kHz, 32 kHz, 48 kHz,MP2L2: 16 kHz, 32 kHz, 48 kHz,PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz,MP3: 8 kHz, 16 kHz, 32 kHz, 48 kHz
Environment Noise Filtering Yes
Network
Protocols TCP/IP,ICMP,HTTP,HTTPS,802.1X,QoS,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,UDP,IPv4/IPv6,IGMP,DHCP,Bonjour,WebSocket,WebSockets
Simultaneous Live View 20
API ONVIF (Profile S, Profile G, Profile T),ISAPI,ISUP,SDK
User/Host 32
Security Password protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),IP address filter
Network Storage NAS (NFS，SMB/ CIFS), ANR
Client iVMS-4200,Hik-Connect
Web Browser IE 10+, Chrome 57+, Firefox 52+, Safari 12+
Wireless (Mobile Communication)
Mobile Communication Type 4G
Frequency LTE FDD/WCDMA: B1
LTE FDD/GSM: B3
LTE FDD/WCDMA/GSM: B5/B7
LTE FDD: B7/B20/B28 LTE TDD: B38/B40/B41;LTE FDD/WCDMA: B1/B4
LTE FDD/WCDMA/GSM: B2/B3/B5/B8
LTE FDD: B12/B17/B28/B66
LTE TDD: B38/B40;LTE FDD/WCDMA: B1/B8
LTE FDD: B3/B11/B18/B19/B21/B26/B28
LTE TDD: B41
Standard LTE FDD/WCDMA, LTE FDD/GSM, LTE FDD/WCDMA/GSM, LTE FDD, LTE TDD;LTE FDD/WCDMA, LTE FDD/WCDMA/GSM, LTE FDD, LTE TDD;LTE FDD/WCDMA, LTE FDD, LTE TDD
Image Parameters Switch Yes
Image Settings Saturation, brightness, contrast, sharpness
Day/Night Switch day, night, auto, scheduled-switch
Wide Dynamic Range (WDR) 120 dB WDR
SNR ＞52dB
Defog yes
Image Stabilization EIS (Built-in gyroscope to improve EIS performance)
Image Enhancement BLC, HLC, 3D DNR
Regional Focus yes
Regional Exposure yes
Interface
Ethernet Interface RJ45, self-adaptive 10M/100M Ethernet port
On-Board Storage Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
Audio 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%,
1 output (line out), line level, output impedance: 600 Ω
Alarm 2 input(s), 1 output(s)
Reset yes
Power Output 12 VDC, max. 1000 mA
Event
Basic Event [PTZ channel] motion detection, video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception
Smart Event [PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection
Linkage [Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
Smart Tracking [PTZ channel] yes
Smart Linkage Manual tracking, auto tracking, tracking takeover, track in turn
Deep Learning Function
Face Capture [Bullet channel] no,[PTZ channel] yes
General
Power 12 VDC ± 25%, max. 28 W,Typical power scenarios: 8.7 W (4G working); Standby scenarios: 7.7W (4G working); Sleep mode: 100 mW
Dimension Ø 220 mm × 382.1 mm (Ø 8.66" × 15.04")
Weight Approx. 6 kg (13.23 lb.)
Material ADC12
Operating Condition -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
General Function mirror,password protection,watermark,IP address filter
Demist Demist by heating the glass
Battery
Battery Type Lithium
Battery Voltage 9 to 12.6 V
Capacity 360 WH (90 WH for each battery)
Max. Charging Voltage 12.6 V
Operating Temperature Charging: -20 °C to 45 °C (-4 °F to 113 °F) Discharging: -20 °C to 60 °C (-4 °F to 140 °F)
Cycle Lifetime Performance mode: 5 days, Proactive mode: 8 days, Standby mode: 80 days *in cloudy/rainy days (25 °C)
Battery Life More than 500 cycles
Battery Weight Approx. 2.74 kg (6.0 lb.) (0.685 kg (1.5 lb.) for each battery)
Approval
Protection IP66 Standard, IK10 (excluding glass window), 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
