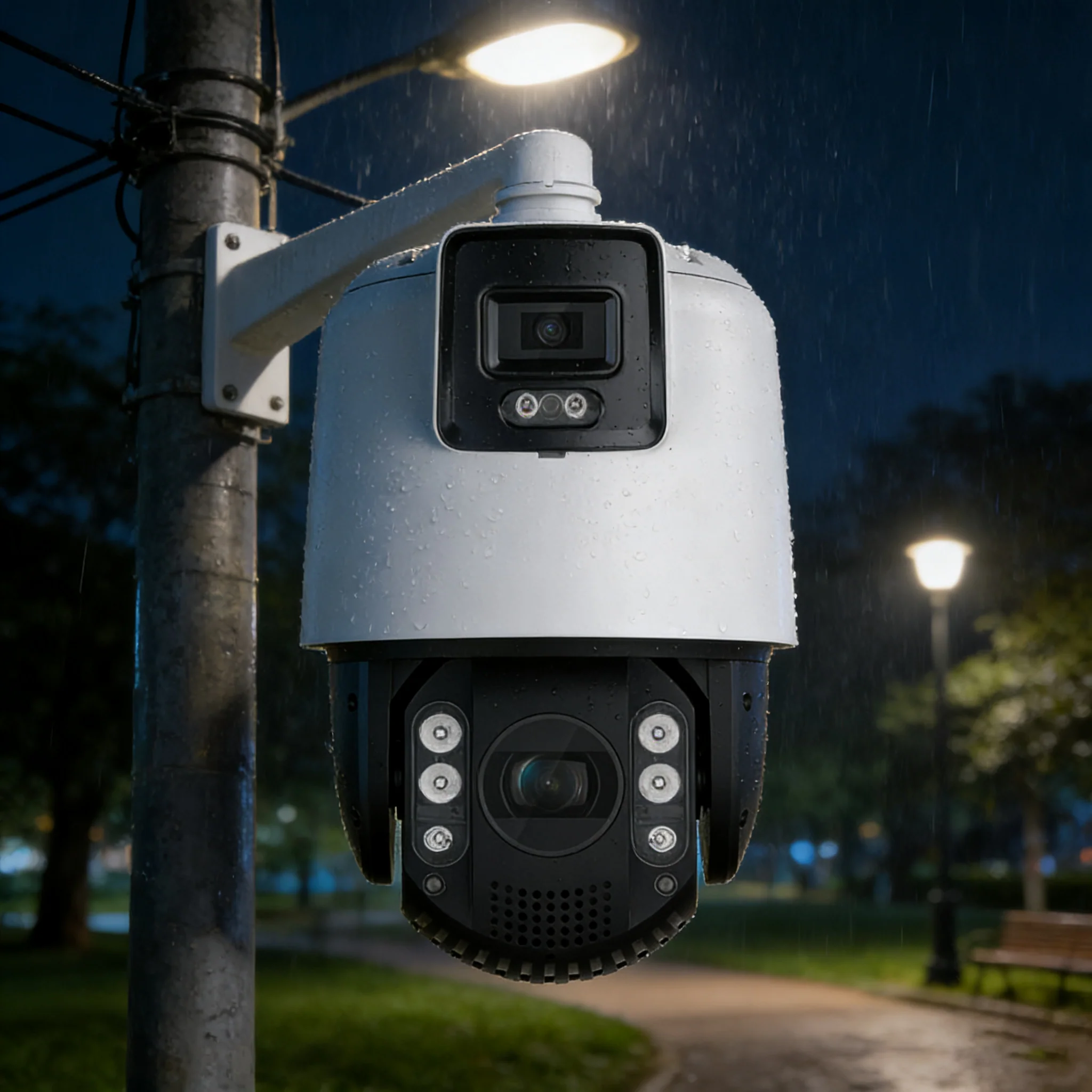

HIK DS-2SE7C124IW-AE(32x/4)(S5) TandemVu 7-inch 2 MP 32X Powered by DarkFighter IR Network Speed Dome
Key Features
- 1/2.8" Progressive Scan CMOS
- Up to 2560× 1440@30fps resolution
- Min. illumination: [PTZ channel]：Colorï¼?.005Lux @ (F1.2，AGC ON),B/Wï¼?.001Lux @ (F1.2，AGC ON) ,[panoramic channel]ï¼?.005Lux @(F1.6,AGC ON) ,0 Lux with IR
- 32× optical zoom, 16× digital zoom
- WDR, HLC, BLC, 3D DNR, Defog, Regional Exposure, Regional Focus, Rapid Focus
- Up to 200 m IR distance
- 24 VAC & Hi-PoE
- Support H.265+/H.265 video compression
- Supports audio visual alarm. The white flashing light and audible warning can be triggered by certain events, and the warning content is selectable
Technical Specifications
| Camera | |
|---|---|
| Image Sensor | [panoramic channel]: 1/2.8" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS |
| Min. Illumination | [PTZ channel]: Color: 0.005 Lux @ (F1.2, AGC ON), B/W: 0.001 Lux @ (F1.2, AGC ON); [panoramic channel]: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/1 s to 1/30000 s |
| Slow Shutter | yes |
| Focus | semi-auto;manual;auto |
| Day & Night | ICR |
| Day/Night Switch | day, night, auto, scheduled-switch |
| BLC | yes |
| WDR | 120 dB WDR |
| HLC | yes |
| 3D DNR | yes |
| Defog | yes |
| EIS | yes |
| Regional Exposure | yes |
| Regional Focus | yes |
| Image Settings | saturation;brightness;contrast;sharpness |
| White Balance | MWB;indoor;outdoor;fluorescent lamp;sodium lamp;ATW;auto;Locked WB;Locked WB |
| Digital Zoom | 16x |
| Optical Zoom | 32x |
| Privacy Mask | mosaic mask ;mask color configurable;polygon region ;[panoramic channel]：up to 24 masks [PTZ channel]:up to 8 masks;[panoramic channel] 8 masks, [PTZ channel] 24 masks |
| SNR | ï¼?2dB |
| Lens | |
| Focal Length | [panoramic channel]: 4 mm; [PTZ channel]: 4.8 to 153 mm, 32 × |
| Zoom Speed | approx. 4.2 s |
| FOV |
[panoramic channel]: Horizontal field of view: 79°, Vertical field of view: 42.4°; [PTZ channel]: Horizontal field of view: 58.4° to 2.14° (wide-tele), Vertical field of view: 33.8° to 1.2° (wide-tele), Diagonal field of view: 65.6° to 2.46° (wide-tele) |
| Aperture | [panoramic channel]: F1.6; [PTZ channel]: F1.2 |
| Illuminator | |
| IR Distance | 200 m |
| PTZ | |
| Movement Range (Pan) | 360° |
| Movement Range (Tilt) | -15° to 90° (auto flip) |
| Pan Speed | pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s |
| Tilt Speed | tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s |
| Proportional Zoom | yes |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans |
| Power-off Memory | yes |
| Park Action | preset;patrol scan;pattern scan;auto scan;tilt scan;random scan;frame scan;panorama scan |
| 3D Positioning | yes |
| PTZ Status Display | yes |
| Preset Freezing | yes |
| Scheduled Task | preset;auto scan;random scan;frame scan;patrol scan;pattern scan;panorama scan;tilt scan;dome reboot;dome adjust;aux output |
| Video | |
| Max. Resolution | 2560 × 1440 |
| Stream Type | main stream;sub-stream;third stream |
| Main Stream |
[panoramic channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);60 Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) [PTZ channel]: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720);60 Hz: 30 fps ( 1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream |
[panoramic channel]: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) [PTZ channel]: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream |
[panoramic channel]: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) [PTZ channel]: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression | H.265;H.264;MJPEG |
| Video Bit Rate | 32 kbps to 16384 kbps |
| H.264 Type | Baseline Profile;Main Profile;High Profile;baseline profile;main profile;high profile |
| H.265 Type | Main Profile;main profile |
| H.264+ | yes |
| H.265+ | yes |
| SVC | yes |
| ROI | 主码流、子码流、第三码流支æŒ?块ROI区域;动态跟踪ROI;main stream, sub-stream and third stream respectively support eight fixed areas |
| Audio | |
| Audio Compression | G.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCM |
| Audio Bit rate | MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps;192kbps |
| Audio Sampling Rate | MP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz |
| Environment Noise Filtering | yes |
| Smart Features | |
| Face Capture | no |
| Basic Event | motion detection;alarm input;alarm output;video tampering alarm;exception |
| Smart Event | intrusion detection;region entrance detection;region exiting detection;audio exception detection;line crossing detection |
| Smart Tracking | manual tracking;event tracking |
| Smart Record | ANR;Dual-VCA |
| Alarm Linkage | smart tracking;preset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP |
| Network | |
| Network Storage | NAS (NFS, SMB/ CIFS); ANR;ANR |
| Protocols | IPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;Bonjour |
| API | ISAPI;Hikvision SDK;ONVIF (Profile S, Profile G, Profile T);ISUP |
| Simultaneous Live View | 20 |
| User/Host | 32 |
| Smooth Streaming | yes |
| Security Measures | Authenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter |
| Client | iVMS-4200 |
| Web Browser | IE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+ |
| Interface | |
| Communication Interface | RJ45, self-adaptive 10M/100M Ethernet port |
| On-board Storage | support microSD/microSDHC/microSDXC cards;up to 256 GB |
| Alarm Input | 2 alarm inputs |
| Alarm Output | 1 alarm output |
| Audio Input | 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10% |
| Audio Output | 1 audio output, line level, impedance: 600 Ω |
| General | |
| Power | 24 VAC, Hi-PoE |
| Power Consumption and Current | Max. 60 W, including max. 3.7 W for heater and max. 16 W for supplement light |
| Operating Conditions | -30â„?to 65â„?(-22°F to 149°F) ;;humidity: â‰?90% |
| Reset | yes |
| Demist | Demist by heating the glass |
| Material | ADC 12, PC, PC+10%GF |
| Dimensions | Ø 220.0 mm × 373.3 mm (Ø 8.7" × 14.7") |
| Weight | Approx. 6 kg (13.23 lb.) |
| Approval | |
| Protection | IP66 Standard, IK10 (excluding glass window), 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection |
