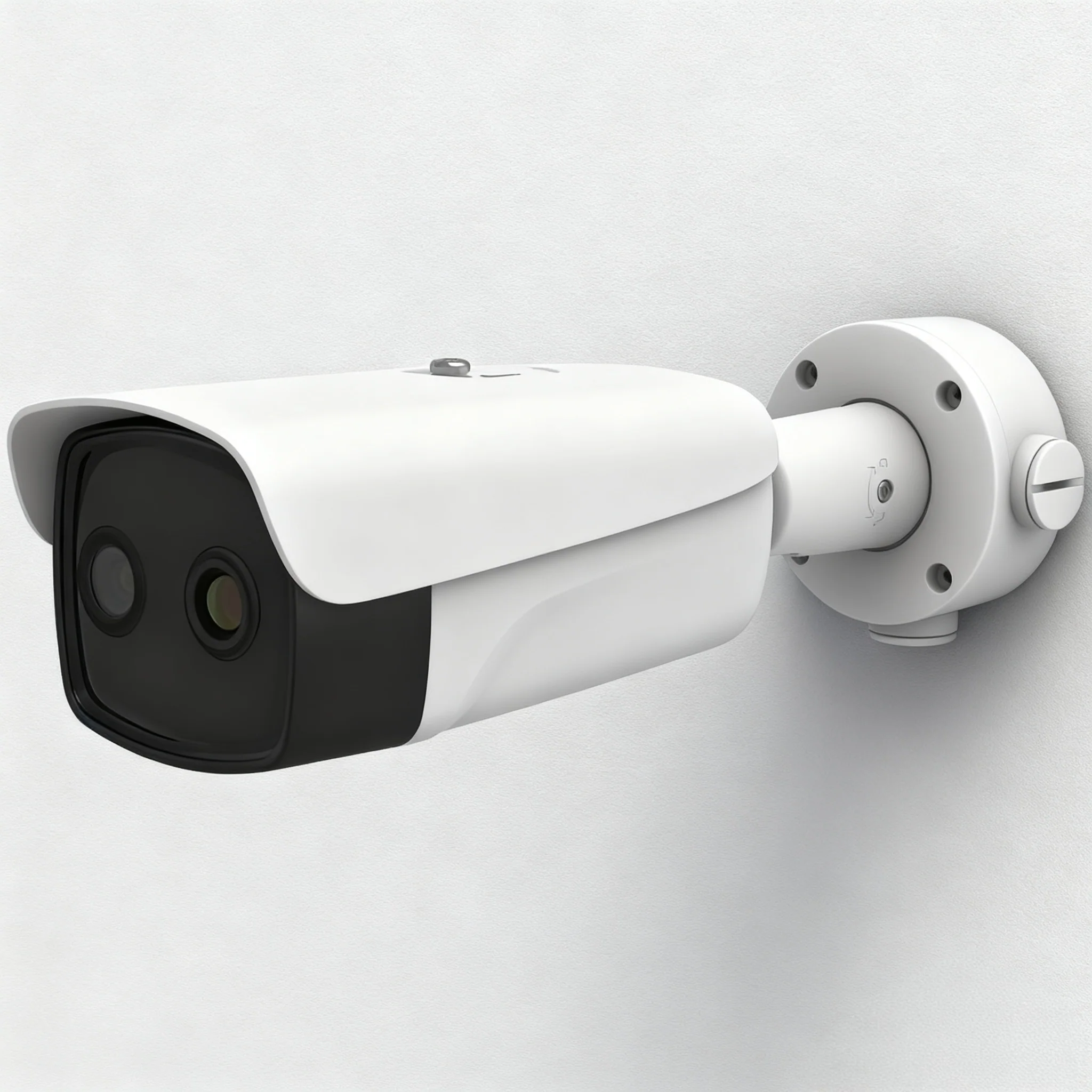

HIK DS-2TD2667-35/PY Thermal & Optical Bi-spectrum Network Bullet Camera
Thermal & Optical Bi-spectrum Network Bullet Camera
- High sensitivity thermal module with 640 x 512 resolution
- NETD is less than 35 mk (@25° C, F#=1.0)
- Supports contrast adjustment
- Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
- Up to 15 palettes of adjustable color
- Powerful perimeter protection functions, based on intelligent algorithm: Line crossing, intrusion, region entrance & exit
- Reliable temperature-anomaly alarm
- Advanced fire detection algorithm
- High quality optical module with 4 MP resolution
- Bi-spectrum image fusion, picture-in-picture preview
- High quality detector with 10 years guarantee
Available models:
Add to Favorites
Add to Favorites
Product Data
- Thermal Module
- Image SensorVanadium Oxide Uncooled Focal Plane Arrays
- Resolution384 × 288
- Pixel Interval17 μm
- Response Waveband8 μm to 14 μm
- NETDLess than 35 mK (@25 °C,F#=1.0)
- Focal Length9.7 mm
- IFOV1.75 mrad
- Field of View37.5° × 28.5° (H × V)
- Min. Focusing Distance1 m
- ApertureF1.0
- Digital Zoom×2, ×4, ×8
- Optical Module
- Image Sensor1/2.7" Progressive Scan CMOS
- Resolution2688 × 1520, 4 MP
- Min. IlluminationColor: 0.0089 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON)
- Shutter Speed1s to 1/100,000s
- Focal Length4 mm
- Field of View84° × 44.8° (H × V)
- Aperture (Range)F1.6
- WDR120 dB
- Image Effect
- Bi-spectrum Image FusionDisplay the details of optical channel on thermal channel
- Picture in PictureDisplay partial image of thermal channel on the full screen of optical channel
- Target ColorationYes. Supported in white hot and black hot mode.
- Illuminator
- IR DistanceUp to 40 m
- IR Intensity and AngleAutomatically adjusted
- Smart Function
- VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
- Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).
- Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
- Temperature Accuracy± 8 °C (±14.4 °F)
- Fire DetectionDynamic fire detection, up to 10 fire points detectable.
- Video and Audio
-
Main Stream
Thermal:
25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240);Optical:
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720);Optical:
60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
-
Sub Stream
Thermal: 25 fps (704 × 576, 352 × 288, 320 × 240);Optical:
50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144);Optical:
60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120)
-
Video Compression
Main Stream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG
- Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
- Network
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE SRTP, SFTP
- Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- APIISAPI, HIKVISION SDK, and third-party management platform, ONVIF (Profile S, Profile G, Profile T)
- Simultaneous Live ViewUp to 20 channels
- User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
- SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
- ClientiVMS-4200, Hik-Connect
-
Web Browser
Live view (plug-in allowed) : Internet Explorer 11
Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +
Local service : Chrome 57.0+, Firefox 52.0 +
- Interface
- Alarm Input2-ch inputs (0-5 VDC)
- Alarm Output2-ch relay outputs, alarm response actions configurable
- Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
- Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
- Audio OutputLinear Level; Impedance: 600 Ω
-
Communication Interface
1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
1, RS-485 interface
- General
-
Web Client Language
32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Power Supply24 VAC ± 25%, 12 VDC ± 25%, two-core terminal block，PoE (802.3af, class 3)
-
Power Consumption
24 VAC ± 25%: 0.38 A to 0.22 A, max. 9 W
12 VDC ± 25%: 0.63 A to 1.06 A, max. 9 W
PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A, max. 9.5 W
- Work Temperature/HumidityFrom -40°C to 65°C (-40°F to 149°F); Humidity: 95% or Less
-
Protection Level
IP67 Standard
TVS 6000 V lightning protection, surge protection, voltage transient protection
- Dimension376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65")
- WeightApprox. 1.82 kg (4.01 lb)
- Detection Range Table/Wide Range Coverage
- Detection Range for Humans (1.8×0.5m)294 m
- Detection Range for Vehicles (4.0×1.4m)902 m
- Recognition Range for Humans (1.8×0.5m)74 m
- Recognition Range for Vehicles (4.0×1.4m)225 m
- Identification Range for Humans (1.8×0.5m)37 m
- Identification Range for Vehicles (4.0×1.4m)113 m
- Detection Range Table/Smart Function Range
- VCA Range for Humans71 m
- VCA Range for Vehicles200 m
- Temperature Measurement Range for Object (2m×2m)234 m
- Temperature Measurement Range for Object (1m×1m)118 m
- Fire Detection Range for Object (2m×2m)588 m
- Fire Detection Range for Object (1m×1m)294 m
