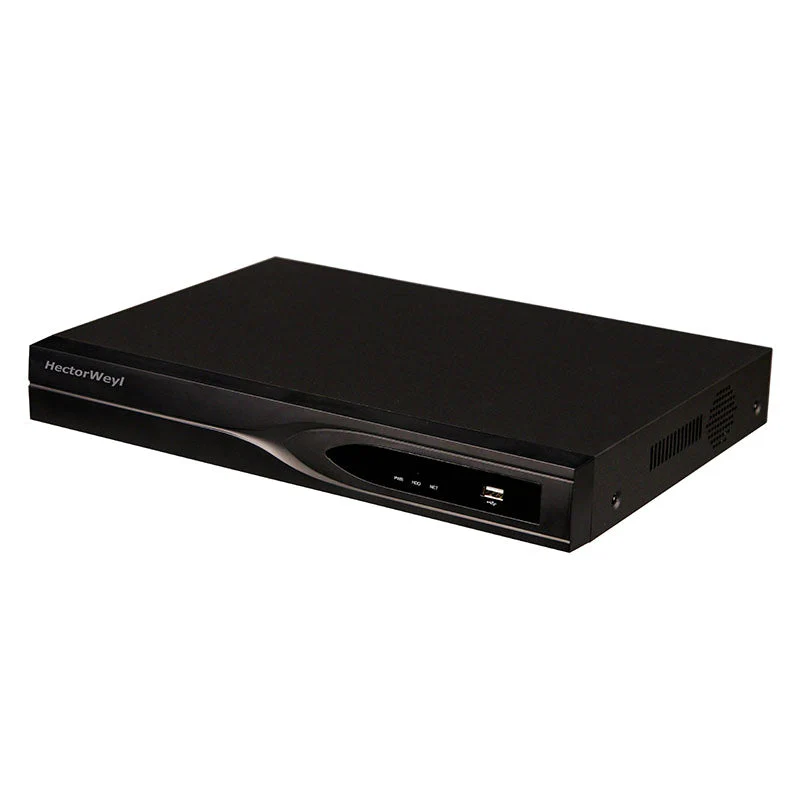

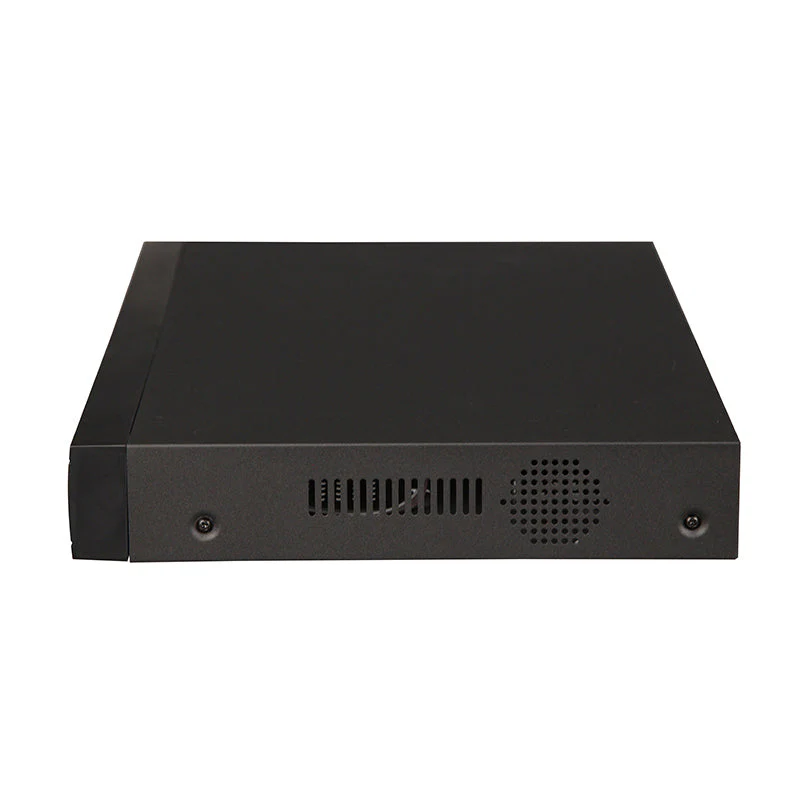

HW-NVR-N5208H-8P-4K 8CH Compact 1U 2HDD 8POE Smart Lite Network Video Recorder

Product image 1
Product image 2
Product image 3
Product image 4

HW-NVR-N5208H-8P-4K 8CH Compact 1U 2HDD 8POE Smart Lite Network Video Recorder

HW-NVR-N5208H-8P-4K 8CH Compact 1U 2HDD 8POE Smart Lite Network Video Recorder


HW-NVR-N5208H-8P-4K 8CH Compact 1U 2HDD 8POE Smart Lite Network Video Recorder Overview:

ŸMax. 96 Mbps incoming;
ŸMax 8 Channel 8MP IPC input;
ŸSupport ONVIF;
Ÿ4-channel 1080P decoding capability;
ŸSupports adaptive decoding
ŸSupport 4K HDMI output;
ŸUp to 8 channels for playback;
Ÿ8 PoE Ports;
ŸSupport P2P, APP Alarm Push;
ŸSupport AI search;
ŸAI by camera: ?Face Detection, Intrusion, Tripwire (classification of human/vehicles /non-motor), Object Detection,and AMD(Active Motion Detection£©
*

Technical Specifications

System

OS

Embedded Linux

OS Operation Interface

Web/operating in local GUI

Perimeter Protection by Camera

Performance

8 channels

Face Detection by Camera

Performance

8 channels

AMD by Camera

Performance

8 channels

Video&Audio Input

Incoming bandwidth

96Mbps

Output bandwidth

96Mbps

IPC Input

8CH

Video & Audio Output

VGA

1920¡Á1080,1280¡Á1024,1280¡Á720,1024¡Á768

HDMI

3840¡Á2160,1920¡Á1080,1280¡Á1024,1280¡Á720,1024¡Á768

Audio Output

1CH, RCA (Line out,2Vp-p,300ohms)

Audio Encoding

Audio Compression

G.711A

Audio Bit Rate

8Kbps(16bit)

Video&Audio Decoding

IP channel Resolution

Up to 3840¡Á2160

Video decoding

H.265£¨Main [email protected] High-tie£©/H.264 Up to High [email protected]£©

Audio decoding

G.711A, G711U, G726

Synchronous Playback

8CH

Decoding Ability

4CH 1080P@30FPS/1CH 4K@30FPS

Preview

Synchronous Preview

8

Multi-screen Display

1, 4, 8, 9 views
*

Playback

Record Mode

Manual; Schedule (general; MD; alarm; intelligent)

AI Search

Search by target classification (human, vehicle, non-motor vehicle)

Backup

USB device

?

Playback Function
1.Play; pause; stop; fast forward; fast backward; rewind; play by frame
2.Full screen; backup (cut/file); partially enlarge; audio on/off

Network

?

Network Protocol

HTTP; TCP/IP; IPv4; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter;

DDNS; FTP; P2P; Auto register

Mobile Phone Access

Android; iOS

Interoperability

ONVIF; SDK

Browser

IE8 or later

HDD

SATA

2

ESATA

0

Max Capacity

14 TB

External Interface

PoE Ports

8

Network Interface

1 RJ45 1000M

VGA

1

HDMI

1

CVBS

1

USB

2 USB 2.0 (1 on front panel, 1 on back panel)

RCA Input

1

RCA Output

1

Alarm Input

8

Alarm Output

4

RS-232? 0

RS-485? 1

Other Function

Two-way Talk

Yes

Alarm Linkage

Record; Snapshot; Buzzer; Log; Preset; Email

Picture Capture

Support JPEG Capture

General Parameter

Front Panel

S

Packing

405x335x120mm

Dimensions

1U??? 360x262x48mm

Weight

3Kg£¨No HDD£©
*

Installation

Desktop Installation

Power Supply

DC 48V/1.875A

Working Temperature

-10¡æ--£«55¡æ

Working Humidity

10£¥--90£¥

Consumption

7W (without HDD)

Certifications

Certifications

CE/FCC
**
$106.40

Original: $304.00

-65%
HW-NVR-N5208H-8P-4K 8CH Compact 1U 2HDD 8POE Smart Lite Network Video Recorder—

$304.00

$106.40
