HW-NVR-N6208E-4K 8CH 1U 2HDDs IntelliSight Network Video Recorder

Product image 1
Product image 2

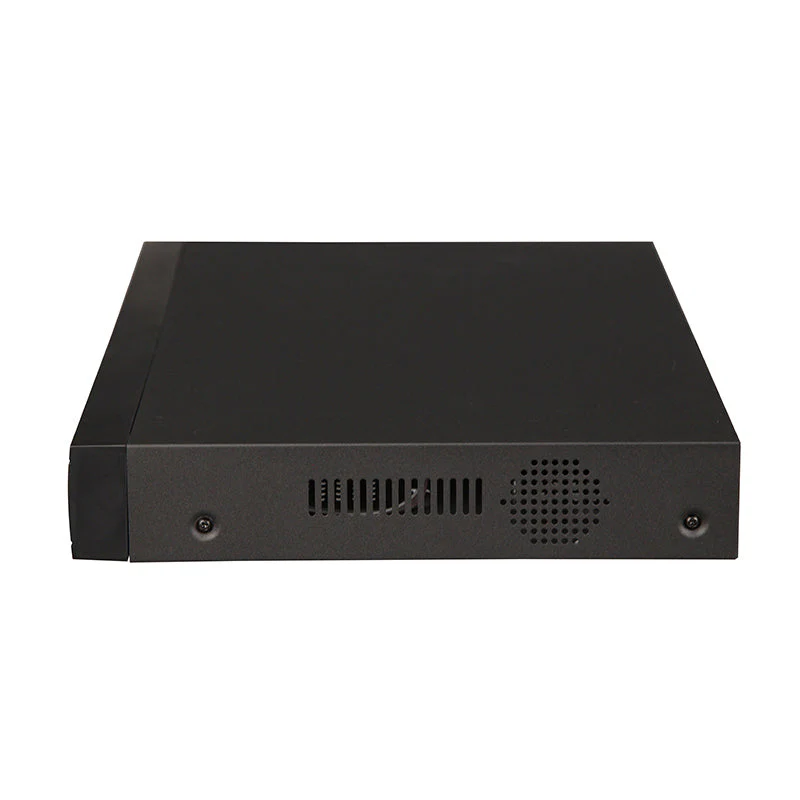

Product image 3

HW-NVR-N6208E-4K 8CH 1U 2HDDs IntelliSight Network Video Recorder

HW-NVR-N6208E-4K 8CH 1U 2HDDs IntelliSight Network Video Recorder


HW-NVR-N6208E-4K 8CH 1U 2HDDs IntelliSight Network Video Recorder Overview£º

ŸMax. 256Mbps incoming;
ŸMax 8 Channel 8MP IPC input;
ŸSupport ONVIF;
Ÿ16-channel 1080P decoding capability;
ŸSupports adaptive decoding
ŸSupport 4K HDMI output;2HDMI;
ŸUp to 16 channels for playback;
ŸSupport 2 1000Mbps RJ45 Ports;
ŸSupport Alarm in/out ports;
ŸSupport P2P, APP Alarm Push;
ŸSupport AI search;
ŸAI by camera: Face Detection , Perimeter Protection, Object Detection,and AMD(Active Motion Detection£©
ŸAI by record: Face Detection, Perimeter Protection, AMD
*

Technical Specifications

System

OS

Embedded Linux

OS Operation Interface

Web/operating in local GUI

Perimeter Protection by Camera

Performance

8 channels

Face Detection by Camera

Performance

8 channels

Object Detection by Camera

Performance

8 channels

AMD by Camera

Performance

8 channels

Perimeter Protection by NVR

Performance

2 channels

Face Detection by NVR

Performance

2 channels

Face Recognition by NVR

Performance

NA

AMD by NVR

Performance

4 channels

Video&Audio Input

Incoming bandwidth

256Mbps

Output bandwidth

256Mbps

IPC Input

8CH

Video & Audio Output

VGA

1920¡Á1080,1280¡Á1024,1280¡Á720

HDMI

3840¡Á2160,1920¡Á1080,1280¡Á1024,1280¡Á720

Audio Output

1CH, RCA (Line out,2Vp-p,300ohms)

Audio Encoding
*

Audio Compression

G.711A

Audio Bit Rate

64Kbps

Video&Audio Decoding

IP channel Resolution

Up to 3840¡Á2160

Video decoding

H.265£¨Main [email protected] High-tie£©/H.264 Up to High [email protected]£©

Audio decoding

G.711A, G711U, G726

Synchronous Playback

8CH

Decoding Ability

16CH 1080P@30FPS/4CH 4K@30FPS

Preview

Synchronous Preview

8

Multi-screen Display

1, 4, 8, 9, 16 views

Playback

Record Mode

Manual; Schedule (general; MD; alarm; intelligent)

AI Search

Search by target classification (human, vehicle, non-motor vehicle)

Backup

USB device

?

Playback Function
1.Play; pause; stop; fast forward; fast backward; rewind; play byframe
2.Full screen; backup (cut/file) ; partially enlarge; audio on/off

Network

?

Network Protocol

HTTP; TCP/IP; IPv4; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter;

DDNS; FTP; P2P; Auto register

Mobile Phone Access

Android; iOS

Interoperability

ONVIF; SDK

Browser

IE8 or later

HDD

SATA

2

ESATA

1

Max Capacity

14 TB

External Interface

PoE Ports

0

Network Interface

2 RJ45 1000M

VGA

1

HDMI

2

CVBS

0

USB

2 USB 2.0 (on back panel)£¬1 USB 3.0 (On front)

RCA Input

1

RCA Output

1

Alarm Input

8

Alarm Output

4
*

RS-232? 1

RS-485? 1

Other Function

IPC Access

Support One-Click add IPC function

Two-way Talk

Yes

Alarm Linkage

Record; Snapshot; Buzzer; Log; Preset; Email

Picture Capture

Support JPEG Capture

General Parameter

Front Panel

JS

Packing

405x365x123mm

Dimensions

1U 360x311.5x48mm

Weight

3Kg£¨No HDD£©

Installation

Desktop Installation

Power Supply

DC 12V 3A

Working Temperature

-10¡æ--£«55¡æ

Working Humidity

10£¥--90£¥

Consumption

20W(without HDD)

Certifications

Certifications

CE/FCC
*****
$141.05

Original: $403.00

-65%
