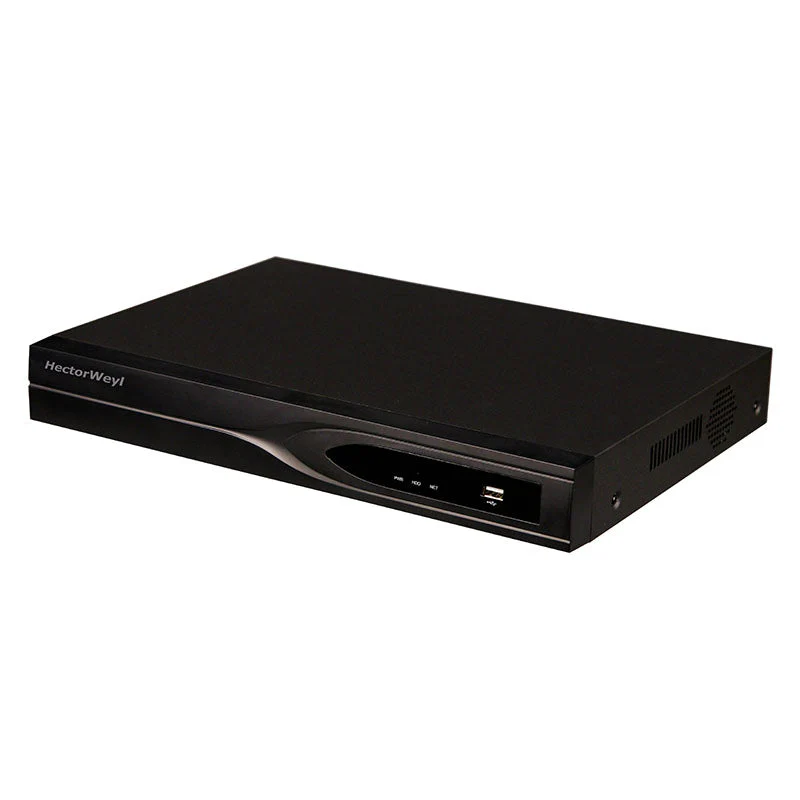

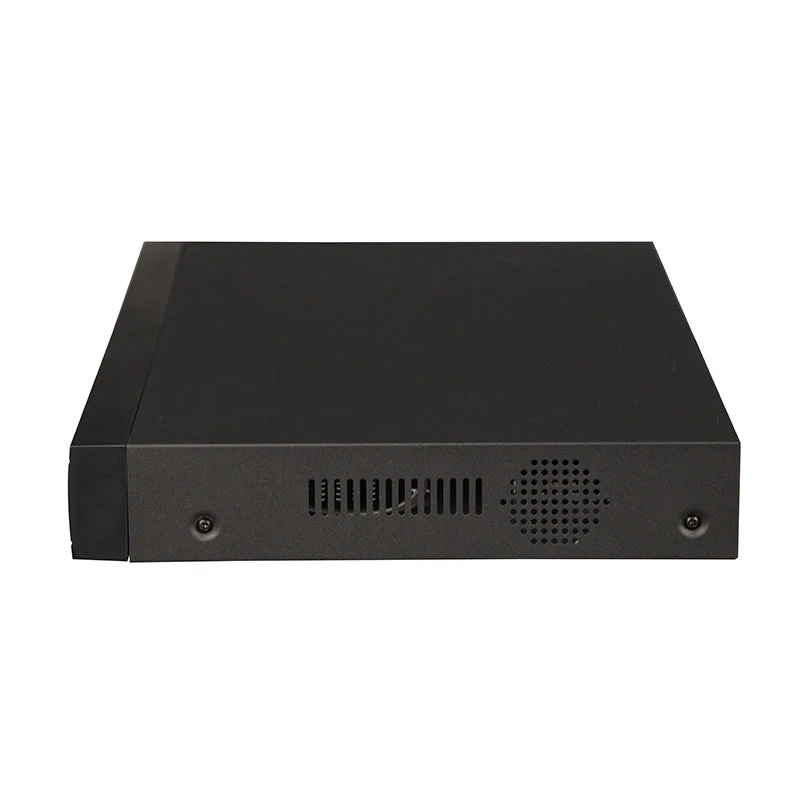

HW-NVR-N6208E-L-8P-4K 8CH 1U 2HDDs IntelliSight 8POE Network Video Recorder
HW-NVR-N6208E-L-4K 8CH 1U 2HDDs IntelliSight Network Video Recorder Description£º
- Max.?256 Mbps incoming;
- Max 8?Channel 8MP IPC input;
- 16-channel?1080P decoding capability;
- Supports?adaptive decoding;
- Support?4K HDMI output ;
- 8POE
- Up?to 16 channels for playback;
- Support?P2P, APP Alarm Push ;
- ?Support AI search;
- AI?by camera:Face Detection, Intrusion, Tripwire (classification of human/vehicles /non-motor), Object Detection, and AMD
- AI?by NVR: Face Detection, Intrusion, Tripwire (classification of human/vehicles/non-motor), and AMD
|
Technical Specifications |
|
|
System |
|
|
OS |
Embedded Linux |
|
OS Operation Interface |
Web/operating in local GUI |
|
Perimeter Protection by Camera |
|
|
Performance |
8 channels |
|
Face Detection by Camera |
|
|
Performance |
8 channels |
|
Object Detection by Camera |
|
|
Performance |
8 channels |
|
AMD by Camera |
|
|
Performance |
8 channels |
|
Perimeter Protection by NVR |
|
|
Performance |
2 channels |
|
Face Detection by NVR |
|
|
Performance |
2 channels |
|
Face Recognition by NVR |
|
|
Performance |
NA |
|
AMD by NVR |
|
|
Performance |
4 channels |
|
Video&Audio Input |
|
|
Incoming bandwidth |
256Mbps |
|
Output bandwidth |
256Mbps |
|
IPC Input |
8CH |
|
Video & Audio Output |
|
|
VGA |
1920¡Á1080,1280¡Á1024,1280¡Á720 |
|
HDMI |
3840¡Á2160,1920¡Á1080,1280¡Á1024,1280¡Á720 |
|
Audio Output |
1CH, RCA (Line out,2Vp-p,300ohms) |
|
Audio Encoding |
|
|
Audio Compression |
G.711A |
|
Audio Bit Rate |
64Kbps |
|
Video&Audio Decoding |
|
|
IP channel Resolution |
Up to 3840¡Á2160 |
|
Video decoding |
H.265£¨Main [email protected] High-tie£©/H.264 Up to High [email protected]£© |
|
Audio decoding |
G.711A, G711U, G726 |
|
Synchronous Playback |
8CH |
|
Decoding Ability |
16CH 1080P@30FPS/4CH 4K@30FPS |
|
Preview |
|
|
Synchronous Preview |
8 |
|
Multi-screen Display |
1, 4, 8, 9, 16 views |
|
Playback |
|
|
Record Mode |
Manual; Schedule (general; MD; alarm; intelligent) |
|
AI Search |
Search by target classification (human, vehicle, non-motor vehicle) |
|
Backup |
USB device |
|
? Playback Function |
1.Play; pause; stop; fast forward; fast backward; rewind; play by frame
2.Full screen; backup (cut/file) ; partially enlarge; audio on/off
|
|
Network |
|
|
? Network Protocol |
HTTP; TCP/IP; IPv4; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; P2P; Auto register |
|
Mobile Phone Access |
Android; iOS |
|
Interoperability |
ONVIF; SDK |
|
Browser |
IE8 or later |
|
HDD |
|
|
SATA |
2 |
|
ESATA |
0 |
|
Max Capacity |
14 TB |
|
External Interface |
|
|
PoE Ports |
8 10/100 Mbps, IEEE 802.3 af/at |
|
Network Interface |
1 RJ45 1000M |
|
VGA |
1 |
|
HDMI |
1 |
|
CVBS |
0 |
|
USB |
2 USB 2.0 (on back panel)£¬1 USB 3.0 (On front) |
|
RCA Input |
1 |
|
RCA Output |
1 |
|
Alarm Input |
0 |
|
Alarm Output |
0 |
|
RS-232 |
0 |
|
RS-485 |
0 |
|
Other Function |
|
|
IPC Access |
Support One-Click add IPC function |
|
Two-way Talk |
Yes |
|
Alarm Linkage |
Record; Snapshot; Buzzer; Log; Preset; Email |
|
Picture Capture |
Support JPEG Capture |
|
General Parameter |
|
|
Front Panel |
JS |
|
Packing |
405x365x123mm |
|
Dimensions |
1U 360x311.5x48mm |
|
Weight |
3Kg£¨No HDD£© |
|
Installation |
Desktop Installation |
|
Power Supply |
AC110V~220V¡À10%? 47Hz¡«63Hz |
|
Working Temperature |
-10¡æ--£«55¡æ |
|
Working Humidity |
10£¥--90£¥ |
|
Consumption |
20W (without HDD,without POE) |
|
Certifications |
|
|
Certifications |
CE/FCC |
