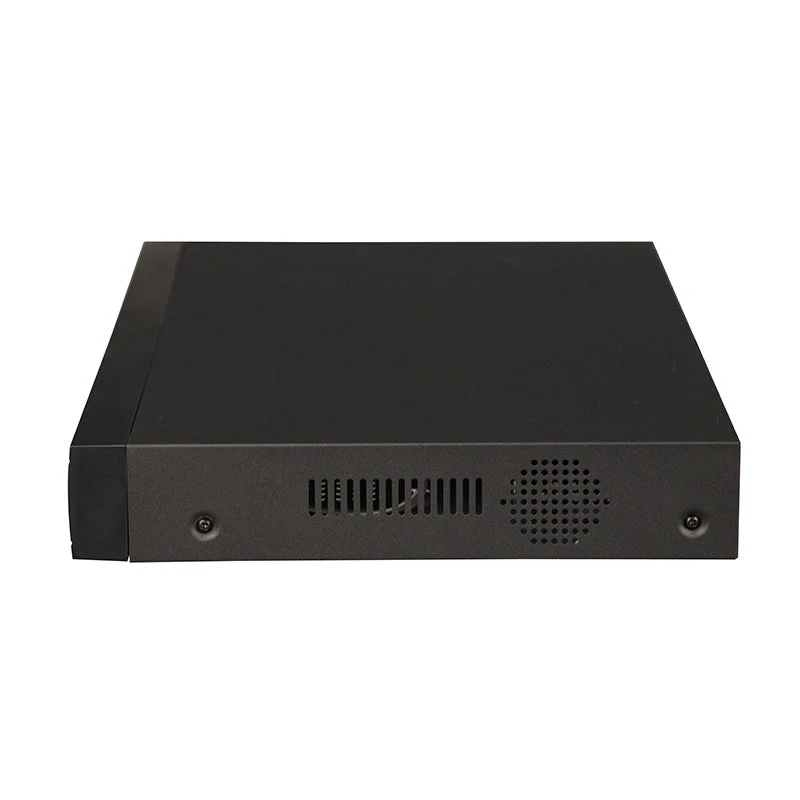

HW-NVR-N6232E-16P-4K 32CH 1U 2HDDs IntelliSight 16POE Network Video Recorder
HW-NVR-N6232E-16P-4K 32CH 1U 2HDDs IntelliSight 16POE Network Video Recorder Overview:
- ŸMax. 256Mbps incoming;
- ŸMax 32 Channel 8MP IPC input;
- ŸSupport ONVIF;
- Ÿ16-channel 1080P decoding capability;
- ŸSupports adaptive decoding
- ŸSupport 4K HDMI output;2HDMI;
- ŸUp to 16 channels for playback;
- Ÿ16POE Ports;
- ŸSupport 2 1000Mbps RJ45 Ports;
- ŸSupport Alarm in/out ports;
- ŸSupport P2P, APP Alarm Push;
- ŸSupport AI search;
- ŸAI by camera: Face Detection , Perimeter Protection, Object Detection,and AMD(Active Motion Detection£©
- ŸAI by record: Face Detection, Perimeter Protection, AMD(Active Motion Detection£©
*****
|
Technical Specifications |
|
|
System |
|
|
OS |
Embedded Linux |
|
OS Operation Interface |
Web/operating in local GUI |
|
Perimeter Protection by Camera |
|
|
Performance |
16 channels |
|
Face Detection by Camera |
|
|
Performance |
16 channels |
|
Object Detection by Camera |
|
|
Performance |
16 channels |
|
SMD by Camera |
|
|
Performance |
16 channels |
|
Perimeter Protection by NVR |
|
|
Performance |
2 channels |
|
Face Detection by NVR |
|
|
Performance |
2 channels |
|
Face Recognition by NVR |
|
|
Performance |
NA |
|
SMD by NVR |
|
|
Performance |
4 channels |
|
Video&Audio Input |
|
|
Incoming bandwidth |
256Mbps |
|
Output bandwidth |
256Mbps |
|
IPC Input |
32CH |
|
Video&Audio Output |
|
|
VGA |
1920¡Á1080,1280¡Á1024,1280¡Á720 |
|
HDMI |
3840¡Á2160,1920¡Á1080,1280¡Á1024,1280¡Á720 |
|
Audio Output |
1CH,RCA(Line out,2Vp-p,300ohms) |
|
Audio Encoding |
|
*
|
Audio Compression |
G.711A |
|
Audio Bit Rate |
64Kbps |
|
Video&Audio Decoding |
|
|
IP channel Resolution |
Up to 3840¡Á2160 |
|
Video decoding |
H.265£¨Main [email protected] High-tie£©/H.264 Up to High [email protected]£© |
|
Audio decoding |
G.711A,G711U,G726 |
|
Synchronous Playback |
16CH |
|
Decoding Ability |
16CH 1080P@30FPS/4CH 4K@30FPS |
|
Preview |
|
|
Synchronous Preview |
32 |
|
Multi-screen Display |
1, 4, 8, 9, 16, 25, 32 views |
|
Playback |
|
|
Record Mode |
Manual; Schedule (general; MD; alarm; intelligent) |
|
AI Search |
Search by target classification (human, vehicle,non-motor vehicle) |
|
Backup |
USB device |
|
? Playback Function |
1.Play; pause; stop; fast forward; fast backward; rewind; play by frame
2.Full screen; backup (cut/file) ; partially enlarge; audio on/off
|
|
Network |
|
|
? Network Protocol |
HTTP;? TCP/IP; IPv4; UPnP; SNMP; RTSP;UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; P2P; Auto register |
|
Mobile Phone Access |
Android; iOS |
|
Interoperability |
ONVIF; SDK |
|
Browser |
IE8 or later |
|
HDD |
|
|
SATA |
2 |
|
ESATA |
1 |
|
Max Capacity |
14 TB |
|
External Interface |
|
|
PoE Ports |
16 |
|
Network Interface |
2 RJ45 1000M |
|
VGA |
1 |
|
HDMI |
2 |
|
CVBS |
0 |
|
USB |
2 USB 2.0 (on back panel)£¬1 USB 3.0 (On front) |
|
RCA Input |
1 |
|
RCA Output |
1 |
|
Alarm Input |
8 |
|
Alarm Output |
4 |
*
|
RS-232 |
1 |
|
RS-485 |
1 |
|
Other Function |
|
|
IPC Access |
Support One-Click add IPC function |
|
Two-way? Talk |
Yes |
|
Alarm Linkage |
Record; Snapshot; Buzzer; Log; Preset; Email |
|
Picture Capture |
Support JPEG Capture |
|
General Parameter |
|
|
Front Panel |
JS |
|
Packing |
405x365x123mm |
|
Dimensions |
1U? 360x311.5x48mm |
|
Weight |
3Kg£¨No HDD£© |
|
Installation |
Desktop Installation |
|
Power Supply |
DC 12V 3A |
|
Working Temperature |
-10¡æ--£«55¡æ |
|
Working Humidity |
10£¥--90£¥ |
|
Consumption |
20W(without HDD) |
|
Certifications |
|
|
Certifications |
CE/FCC |
***
